Pit Stop Pulleys
Rapid-configuration modular drum and pulley systems designed to reduce downtime, simplify maintenance and support fast replacement across tail, snub and drive pulley applications.
Rapid Configuration
Modular drum system
for faster setup
Tail Pulleys
Configured for tail
conveyor positions
Snub Pulleys
Conveyor snub pulley
configurations available
Drive Pulleys
Suitable for drive
conveyor applications
Standard Duty
200–400mm drum
diameter range
Heavy Duty
324–500mm drum
diameter range
Through Shaft
Heavy-duty through tube
shaft construction
Shaft Ends
Off-the-shelf shaft ends
available for replacement
Reduced Downtime
Designed around faster
maintenance response
Pit Stop
Pulleys

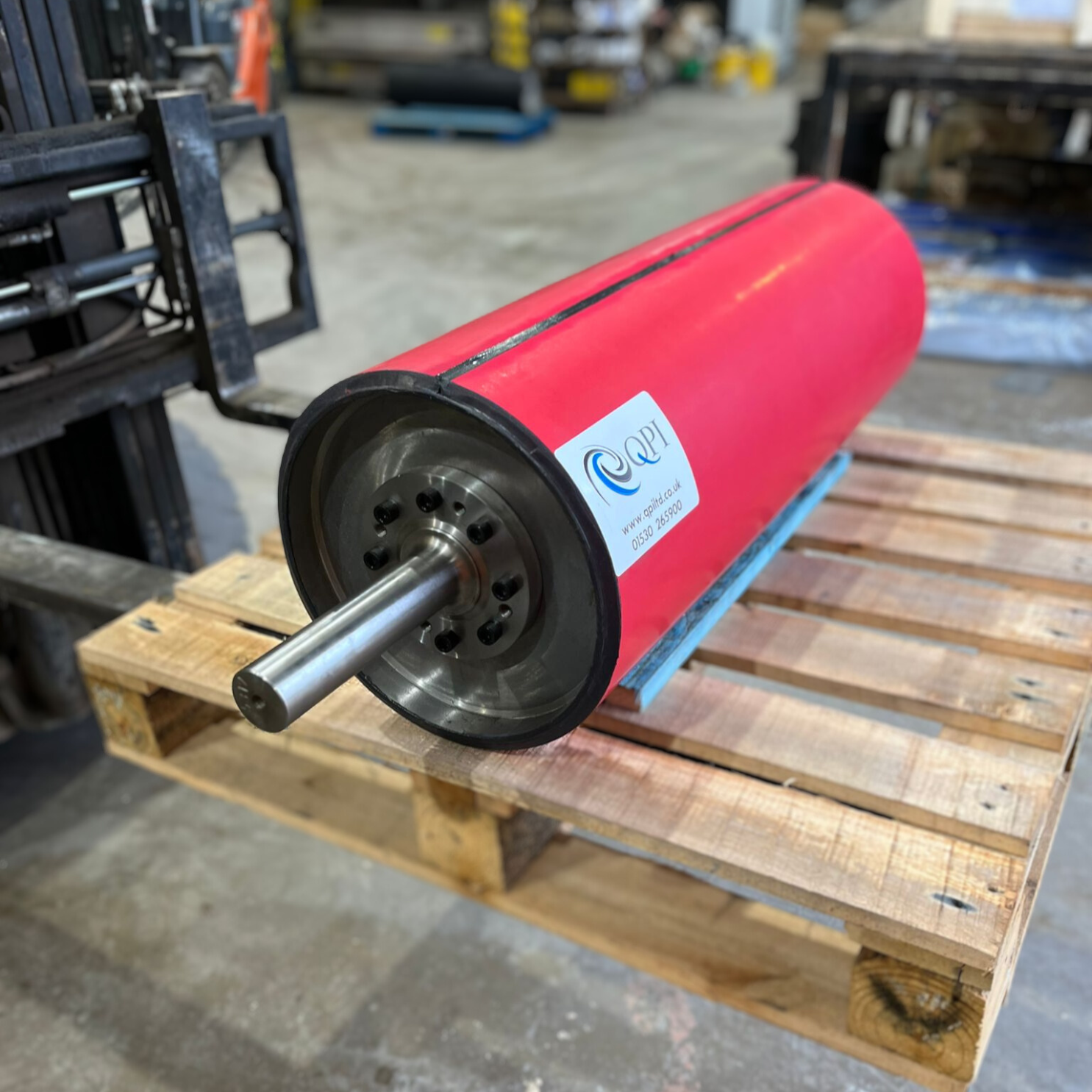

QPI’s Pit Stop Drum/ Pulley is a modular type drum system that can be used to create tail, snub, and drive configurations rapidly. With over 2,500 supplied and fitted nationwide.
Pit Stop Pulley Overview
Rapid Configuration Drum & Pulley Systems
QPI’s Pit Stop Drum / Pulley system is engineered to support rapid maintenance response and simplified conveyor pulley replacement across tail, snub and drive pulley applications.

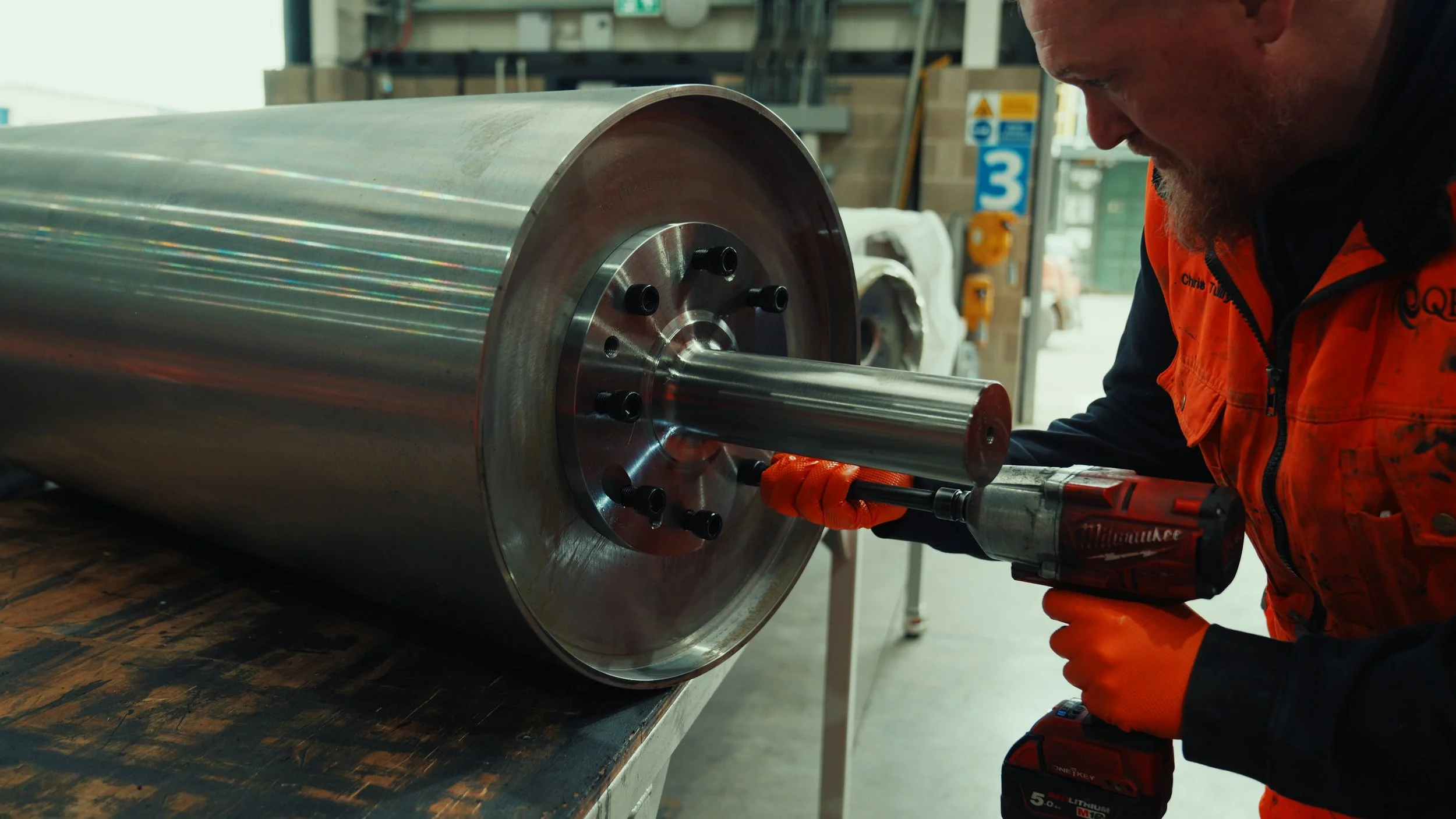

The system provides the benefit of ‘off the shelf’ shaft ends that can be dispatched in the event of a bearing failure or can be held by sites on stock if down time is a critical factor.
Pulley Configurations
Tail, Snub & Drive Arrangements
- Tail pulley configurations
- Snub pulley arrangements
- Drive pulley applications
- Rapid modular assembly
- Flexible conveyor integration
Standard Duty Range
Standard Conveyor Applications
- 200 - 400mm drum diameters
- 30 - 70mm shaft diameters
- Through-shaft construction
- Modular shaft-end design
- Industrial conveyor suitability
Heavy Duty Range
Heavy Industrial Pulley Systems
- 324 - 500mm drum diameters
- 60 - 100mm shaft diameters
- Heavy-duty through tubes
- Robust shaft location support
- High-duty conveyor suitability
Maintenance Benefits
Reduced Downtime Response
- Off-the-shelf shaft ends
- Rapid replacement capability
- Improved maintenance access
- Reduced operational downtime
- Critical stockholding support
Industry Applications
Built for Material Handling
- Quarrying & aggregates
- Recycling operations
- Mining conveyor systems
- Industrial processing plants
- Heavy-duty conveying systems
Technical Design
Through-Shaft Drum Construction
- Heavy-duty through tubes
- Replaceable shaft-end arrangement
- Industrial drum assemblies
- Service-focused engineering
- Long-term operational reliability
Drum Types &
Specification Factors
Conveyor drum performance depends on pulley position, shaft arrangement, bearing selection, lagging suitability, conveyor duty and the manufacturing process behind each assembly.
Drum Types
Drive, Tail, Bend & Snub Pulleys
Conveyor drum selection should match the pulley position, belt tension, wrap angle, material loading and operating environment. Drive drums, tail drums, bend pulleys and snub pulleys each perform different roles within the conveyor system.
Position-Specific SelectionStandard Drums
External Bearing Drum Assemblies
Standard conveyor drums provide a proven solution for heavy-duty material handling applications, with external bearing arrangements, site-specific drum face widths, shaft configurations and lagging options available.
Standard Drum SupplyInternal Bearing Drums
Compact Conveyor Drum Design
Internal bearing drums are suited to restricted conveyor layouts where reduced external projection, cleaner guarding integration and compact installation are important operational requirements.
Compact Drum AssembliesShaft Options
Live, Dead, Stepped & Keyed Shafts
Shaft arrangements are specified around conveyor loading, torque transmission, bearing layout, pulley size and long-term operational reliability. Options can include live shafts, dead shafts, stepped shafts and keyed shaft configurations.
Shaft ConfigurationBearings
Dodge Bearing Support
Bearing selection is critical to drum performance, load capacity and service life. QPI can support conveyor drum assemblies using heavy-duty Dodge bearing arrangements where required for demanding industrial use.
Dodge Supplier SupportManufacturing Process
Built Around Conveyor Duty
Drum manufacture should account for shell construction, shaft fitment, welding quality, balancing, lagging compatibility, bearing selection and final inspection to support dependable conveyor operation in harsh environments.
Manufacturing Quality
Need a Drum
or Pulley Specified?
Make Enquiry
From standard conveyor drums and Pit Stop pulleys through to shaft options, internal bearing drums, Dodge bearing arrangements and lagging systems, QPI supports drum and pulley specification for demanding conveyor applications.
