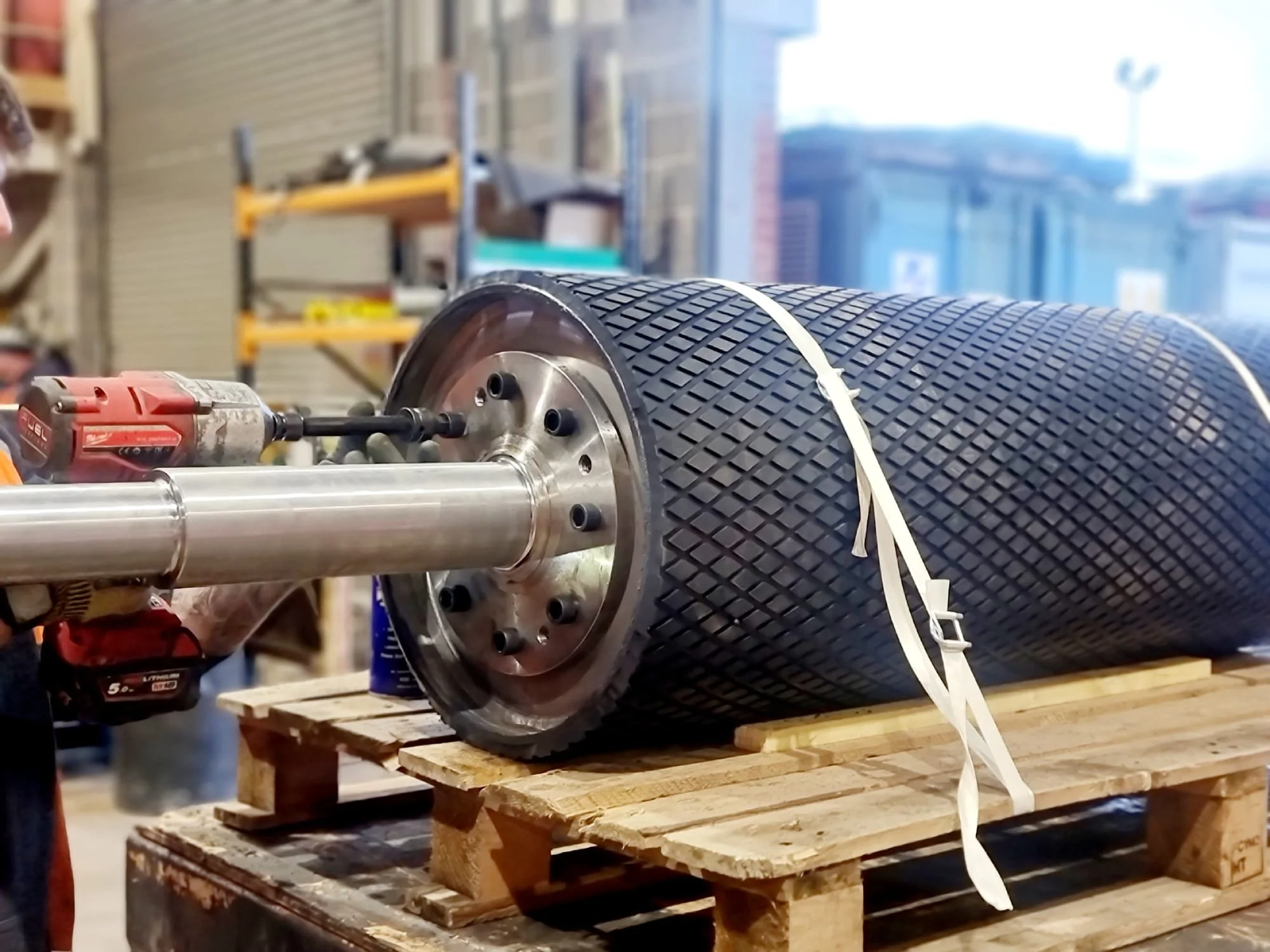

Drum Lagging
Heavy-duty drum lagging systems engineered to improve pulley traction, reduce belt slip and protect conveyor drum surfaces across demanding industrial conveying environments.
Improved Traction
Increased pulley grip
and belt contact
Reduced Belt Slip
Improved conveyor drive
performance under load
Plain Rubber
General-purpose lagging
for standard applications
Diamond Groove
Enhanced grip and
water displacement
Herringbone
Directional groove profile
for wet conditions
Ceramic Lagging
High-grip abrasion resistant
pulley protection
Pulley Protection
Helps protect drum shells
from wear and damage
Wet Conditions
Improved conveyor reliability
in exposed environments
Relagging Support
Drum refurbishment and
pulley upgrade services
Drum
Lagging
Conveyor drum lagging systems engineered to improve pulley traction, reduce belt slip and protect drum surfaces across demanding industrial conveying environments.
Drum Lagging Overview
Pulley Traction & Drum Protection Systems
QPI supplies conveyor drum lagging systems designed to improve conveyor drive performance, reduce belt slip and protect drum surfaces across heavy-duty material handling applications.
Available in multiple lagging profiles and material options, drum lagging systems can be specified around conveyor duty, moisture exposure, conveyed material characteristics and operational environment requirements.
Plain Rubber
General Purpose Lagging
- Standard conveyor use
- Improved traction
- Drum surface protection
- Dry condition suitability
- Cost-effective solution

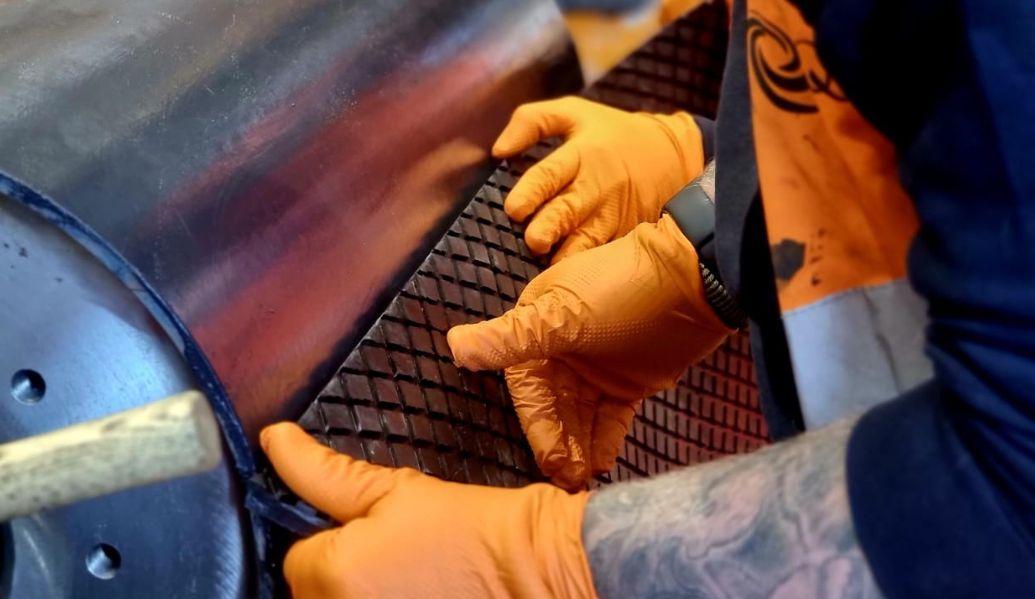

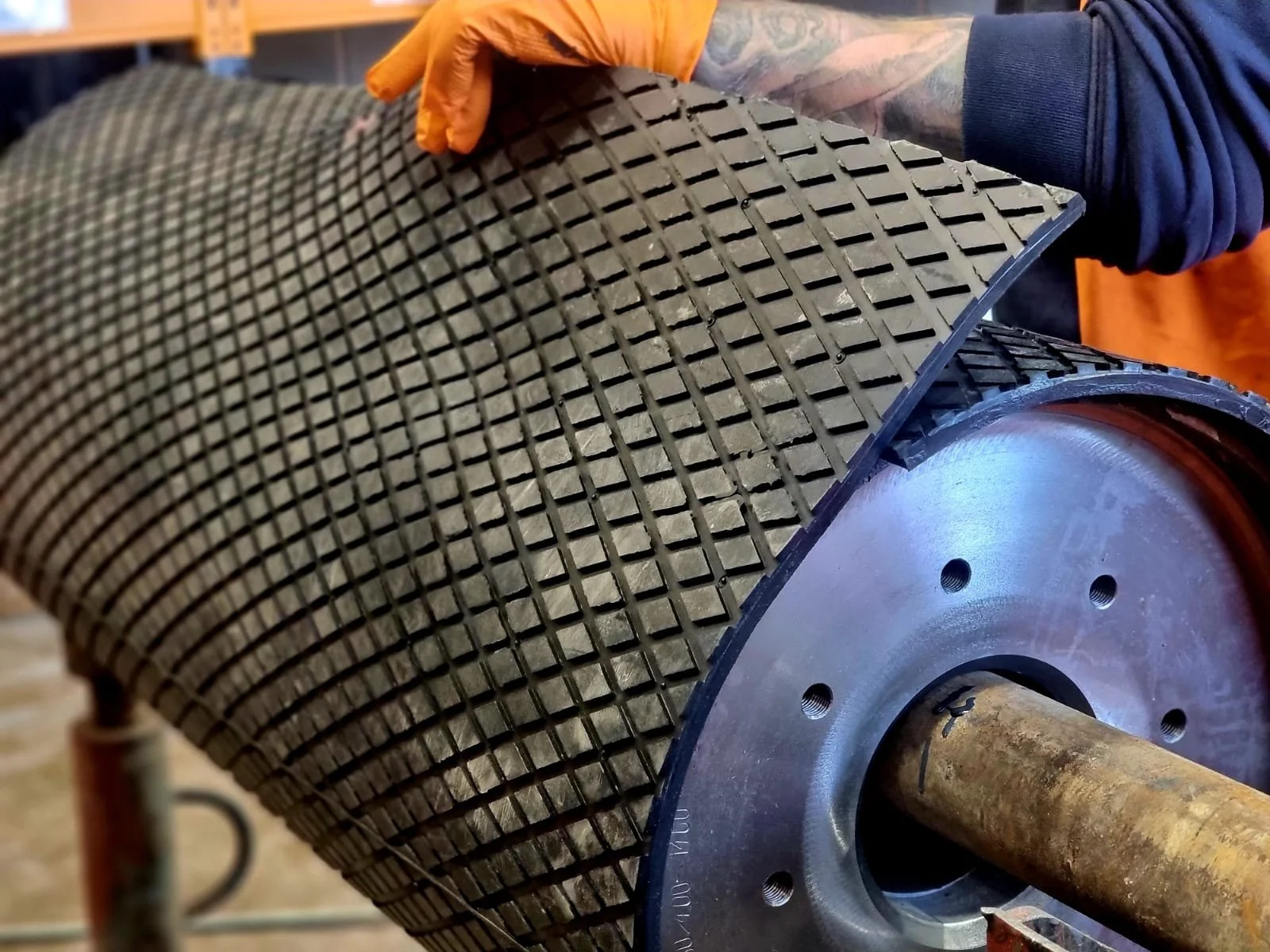

Diamond Groove
Enhanced Grip Performance
- Improved water displacement
- Enhanced conveyor traction
- Reduced belt slip
- Wet condition suitability
- Heavy-duty applications
Herringbone Profile
Directional Water Dispersion
- Directional groove profile
- Water clearing capability
- Improved wet traction
- Outdoor conveyor suitability
- Quarry & recycling use

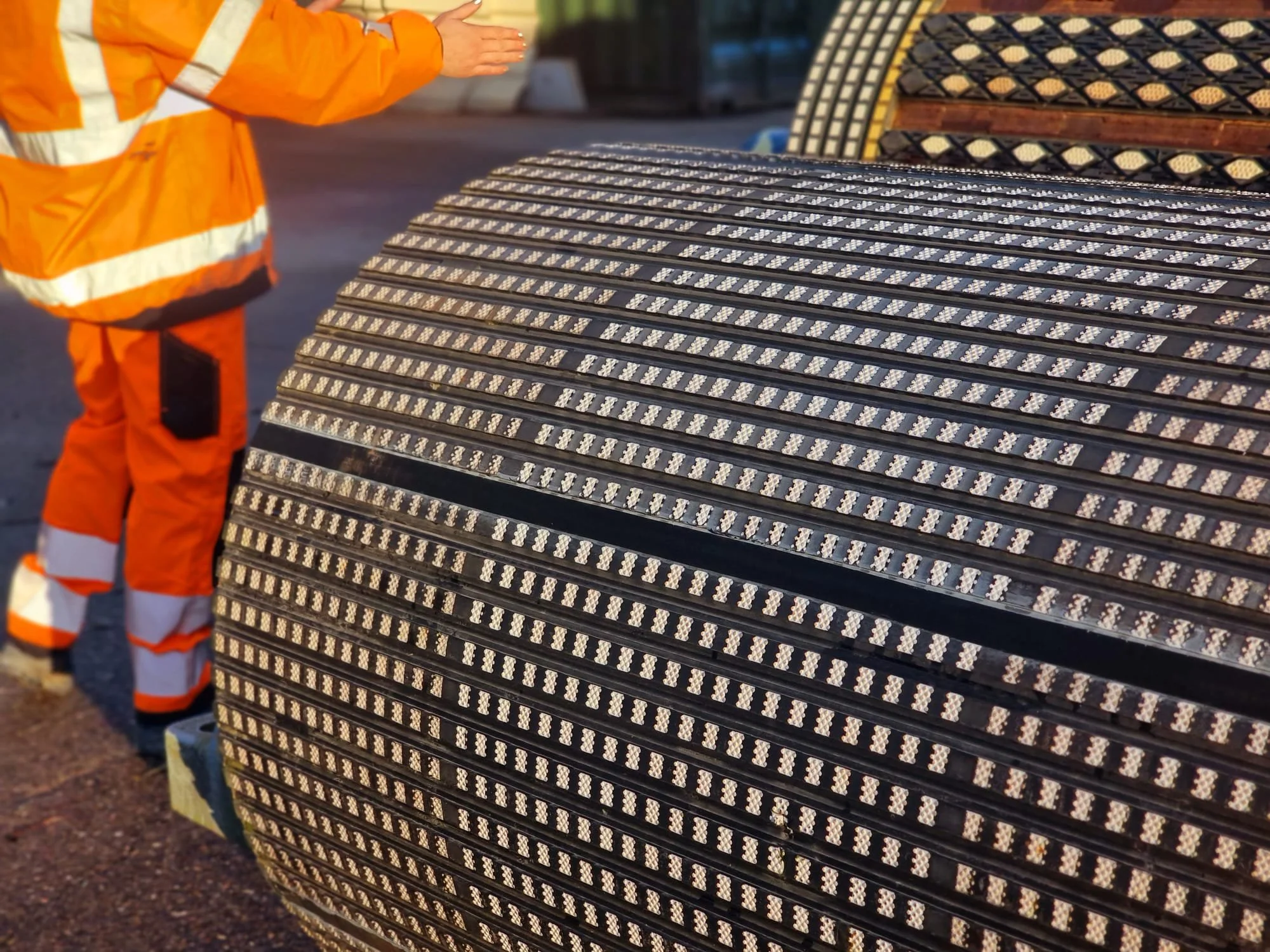

Ceramic Lagging
High-Traction Wear Resistance
- Extreme-duty suitability
- High abrasion resistance
- Maximum traction support
- Heavy-load conveyors
- Long operational life
Operational Benefits
Conveyor Reliability Improvements
- Reduced belt slip
- Improved pulley grip
- Extended drum life
- Reduced wear exposure
- Improved conveyor reliability

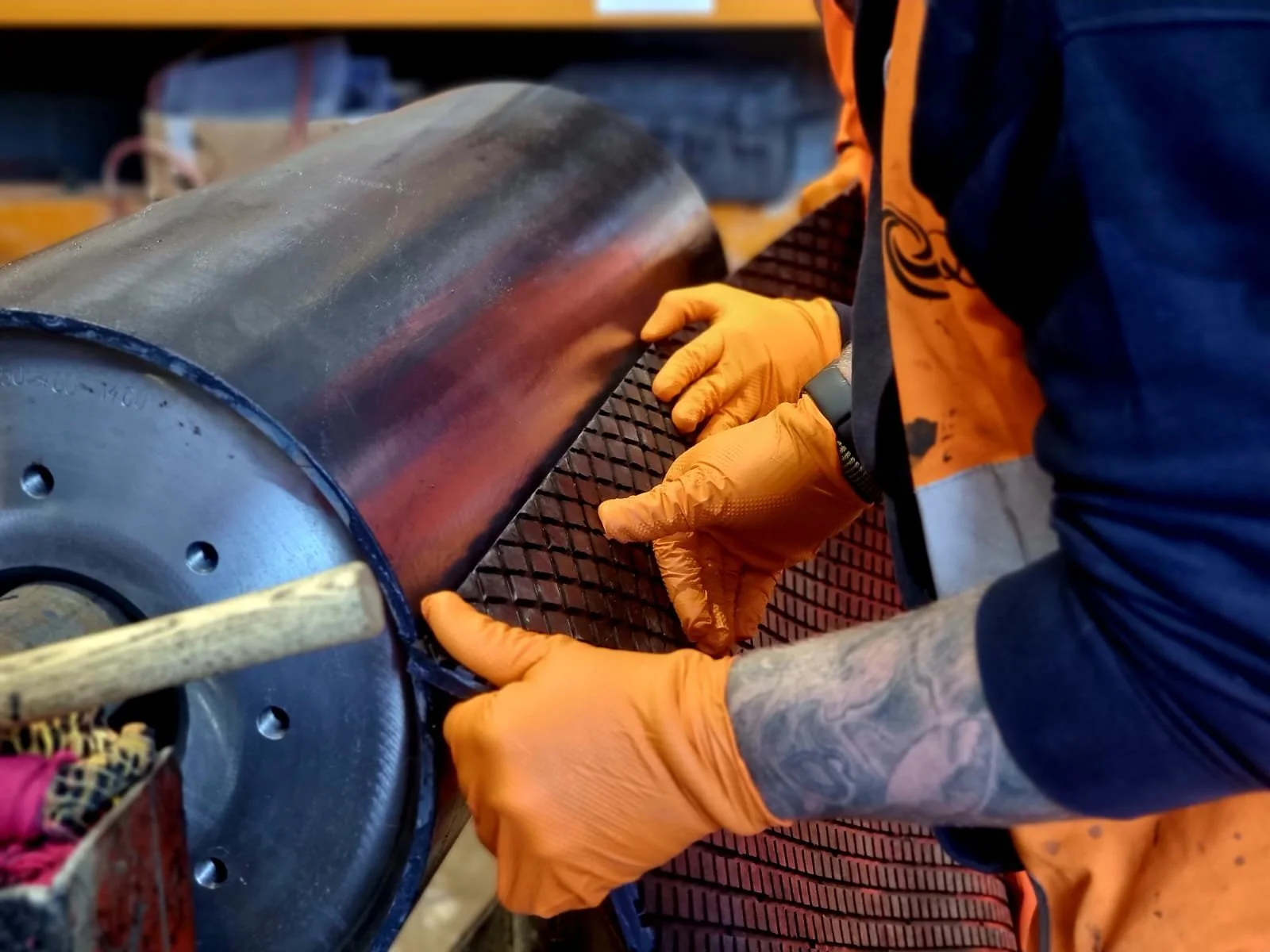

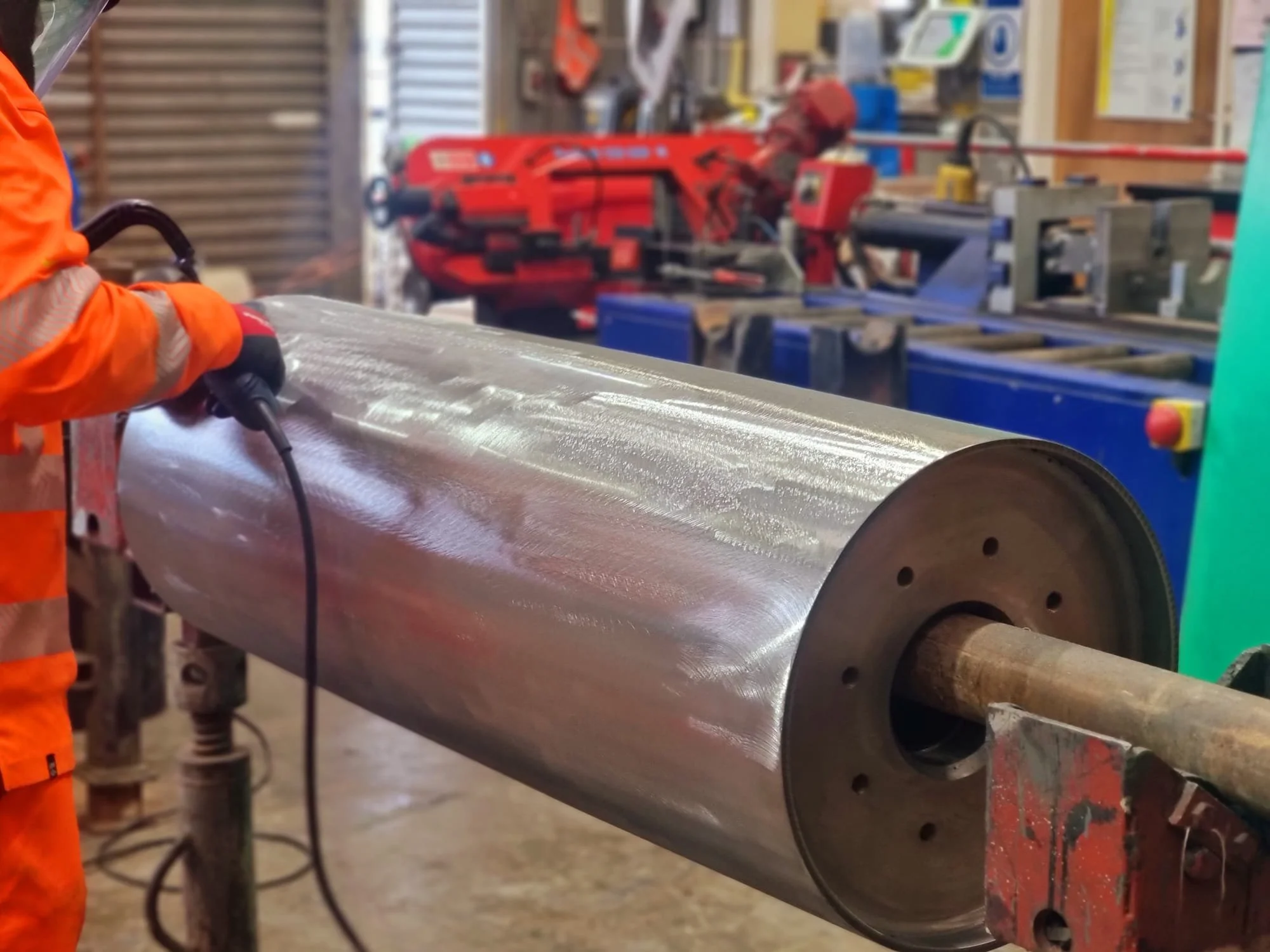

Refurbishment Support
Drum Relagging & Upgrades
- Existing lagging removal
- Drum inspection support
- Relagging services
- Pulley refurbishment
- Conveyor upgrade support
Drum Types &
Specification Factors
Conveyor drum performance depends on pulley position, shaft arrangement, bearing selection, lagging suitability, conveyor duty and the manufacturing process behind each assembly.
Drum Types
Drive, Tail, Bend & Snub Pulleys
Conveyor drum selection should match the pulley position, belt tension, wrap angle, material loading and operating environment. Drive drums, tail drums, bend pulleys and snub pulleys each perform different roles within the conveyor system.
Position-Specific SelectionStandard Drums
External Bearing Drum Assemblies
Standard conveyor drums provide a proven solution for heavy-duty material handling applications, with external bearing arrangements, site-specific drum face widths, shaft configurations and lagging options available.
Standard Drum SupplyInternal Bearing Drums
Compact Conveyor Drum Design
Internal bearing drums are suited to restricted conveyor layouts where reduced external projection, cleaner guarding integration and compact installation are important operational requirements.
Compact Drum AssembliesShaft Options
Live, Dead, Stepped & Keyed Shafts
Shaft arrangements are specified around conveyor loading, torque transmission, bearing layout, pulley size and long-term operational reliability. Options can include live shafts, dead shafts, stepped shafts and keyed shaft configurations.

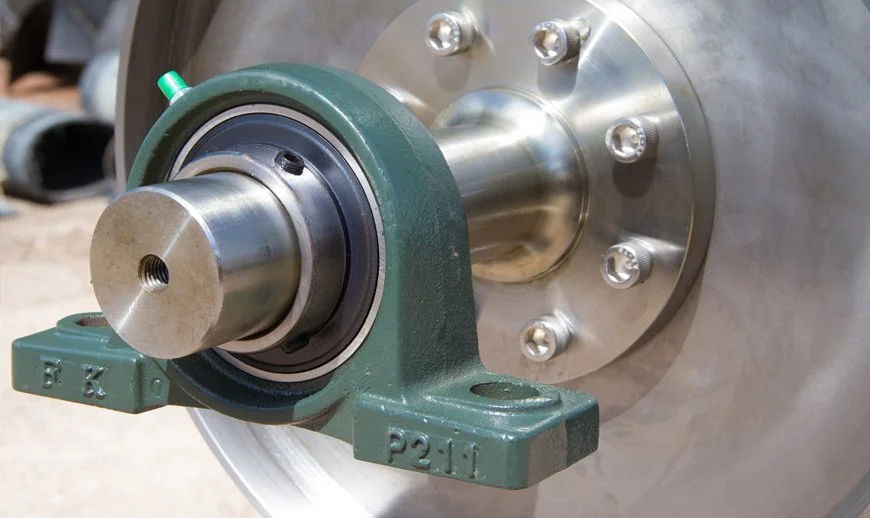

Shaft ConfigurationBearings
Dodge Bearing Support
Bearing selection is critical to drum performance, load capacity and service life. QPI can support conveyor drum assemblies using heavy-duty Dodge bearing arrangements where required for demanding industrial use.
Dodge Supplier SupportManufacturing Process
Built Around Conveyor Duty
Drum manufacture should account for shell construction, shaft fitment, welding quality, balancing, lagging compatibility, bearing selection and final inspection to support dependable conveyor operation in harsh environments.
Manufacturing Quality
Need a Drum
or Pulley Specified?
Make Enquiry
From standard conveyor drums and Pit Stop pulleys through to shaft options, internal bearing drums, Dodge bearing arrangements and lagging systems, QPI supports drum and pulley specification for demanding conveyor applications.
